RW Replica Wheels

20 inch 20 x9" Wheels for Dodge Ram 1500 Satin Black 2013-2017 Ram 1500 Rims

  • Product Code: 173309578902
  • Availability: In Stock
  • $779.00




RW Replicas - All wheels are 100% inspected prior to shipping!!



Description:

Set of Rims for Ram 1500 2011-2018 (5 lug)

(4) Ram 1500 (2013-2017) - OE Replica

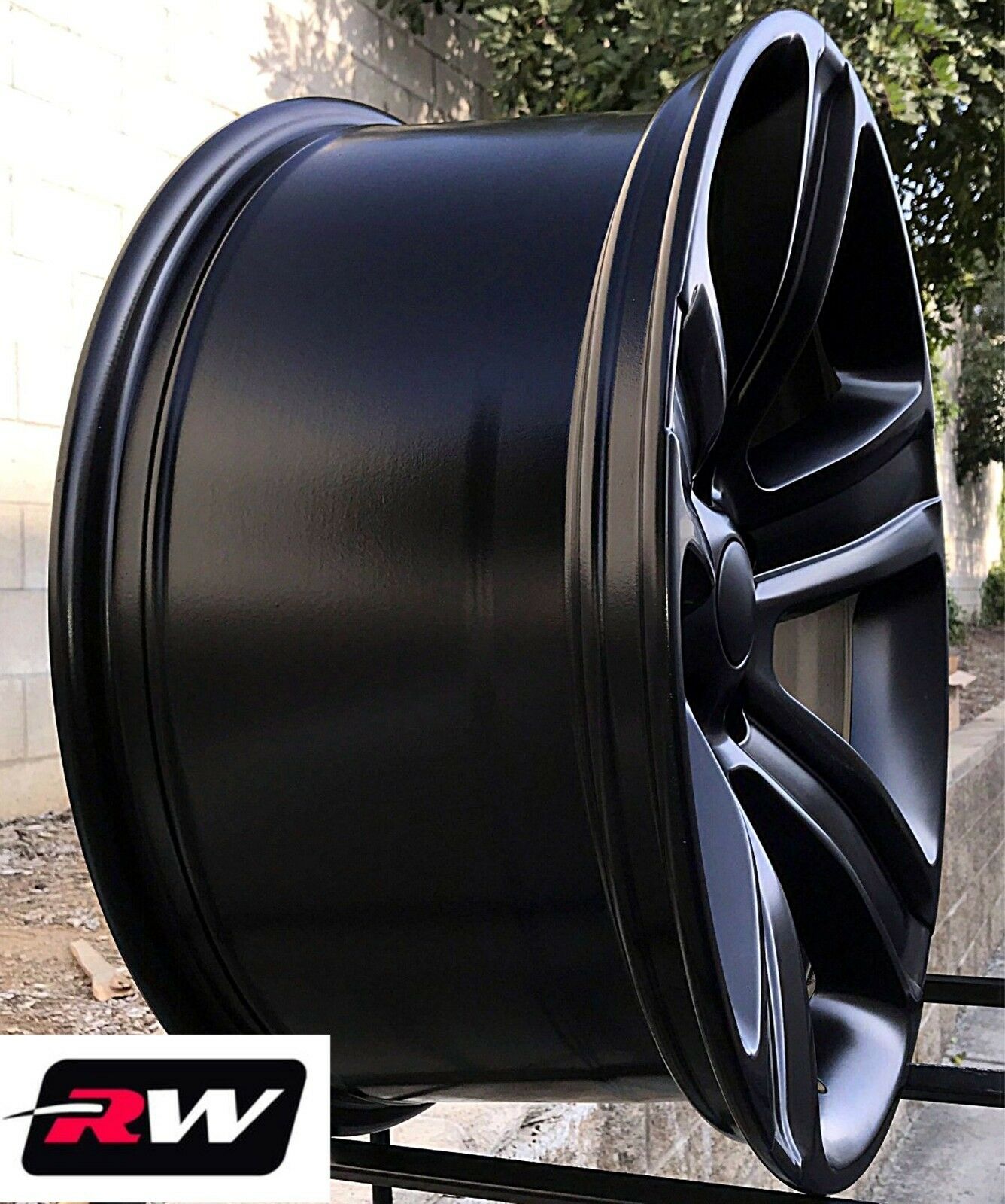

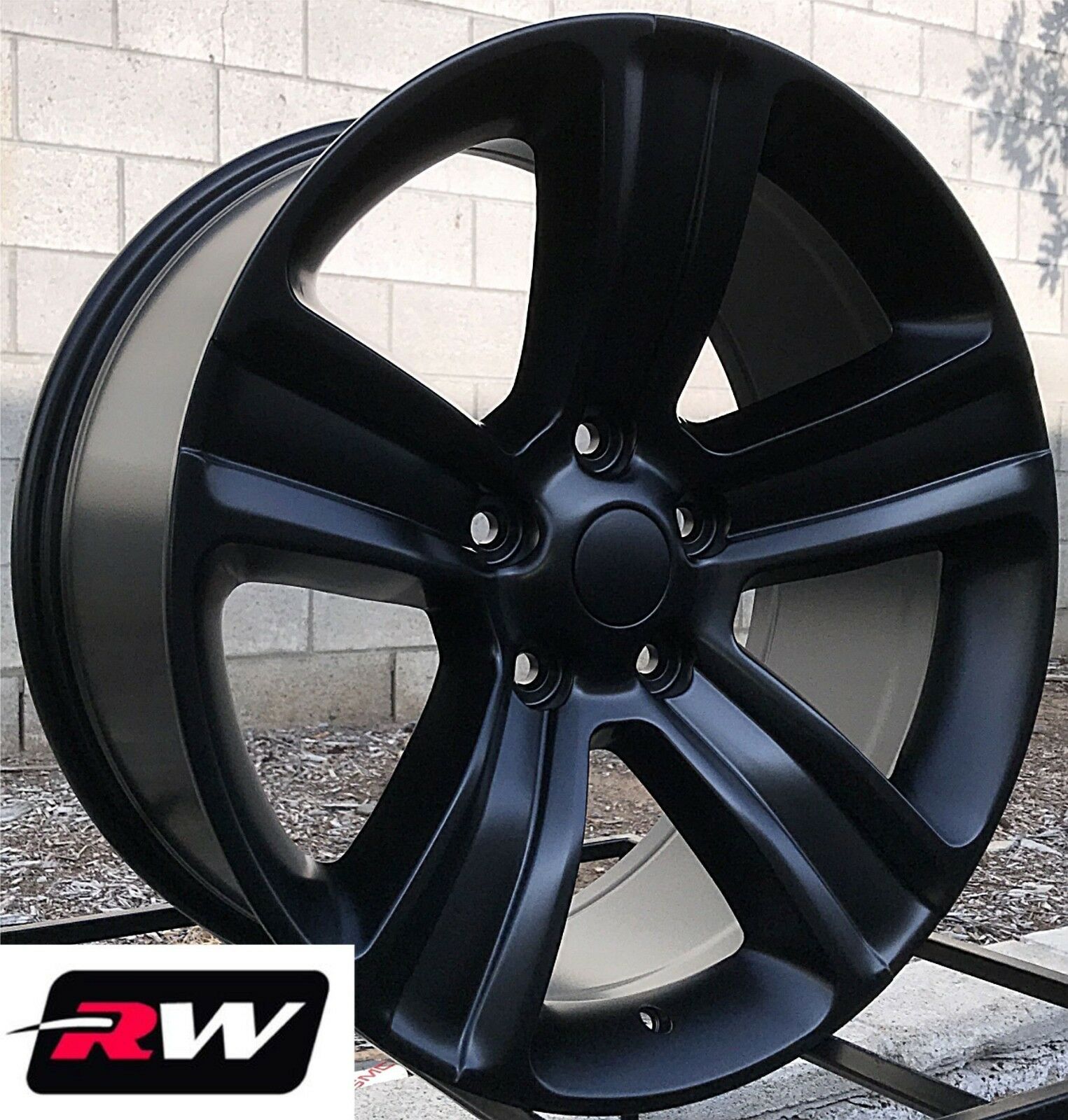

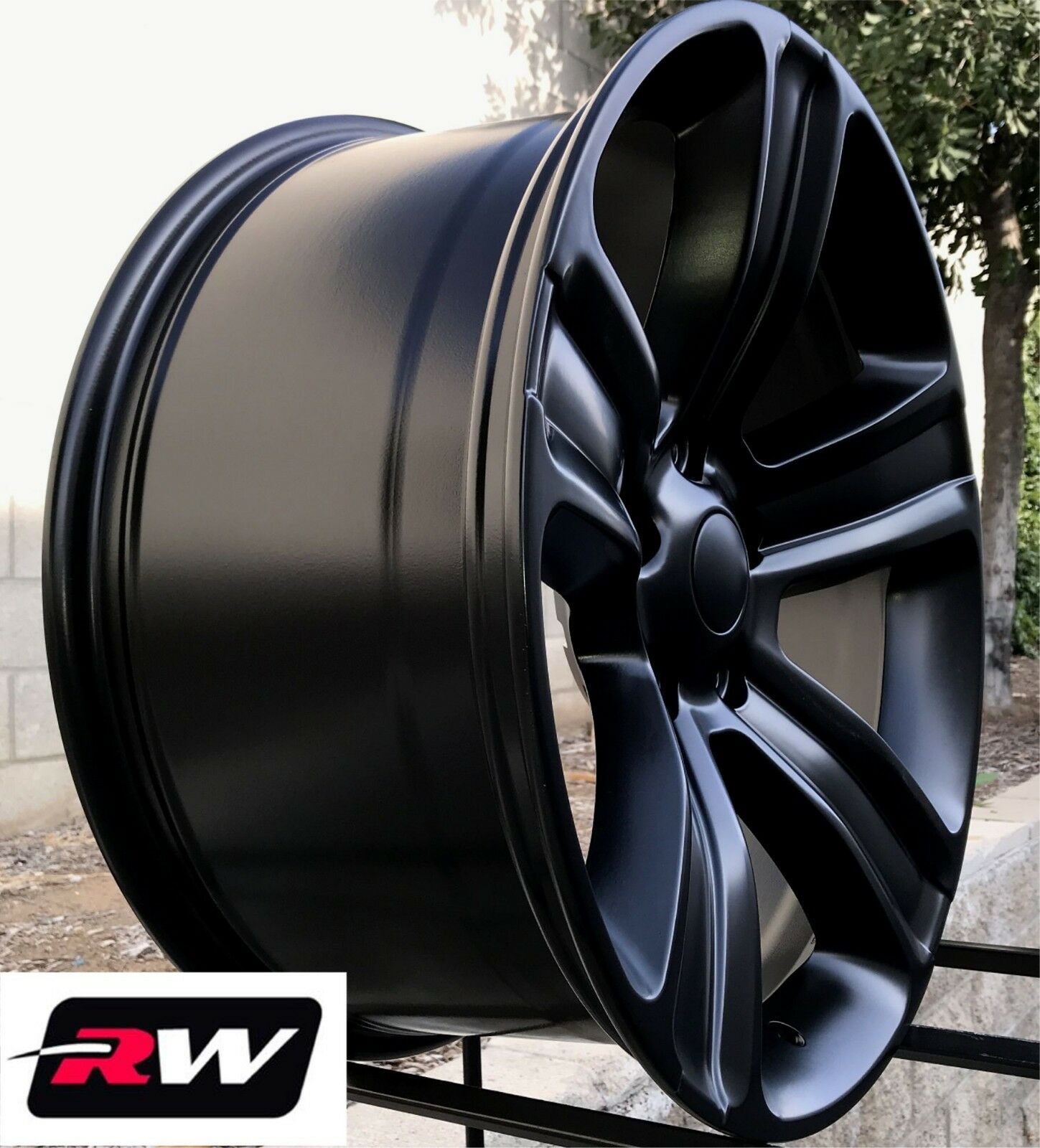

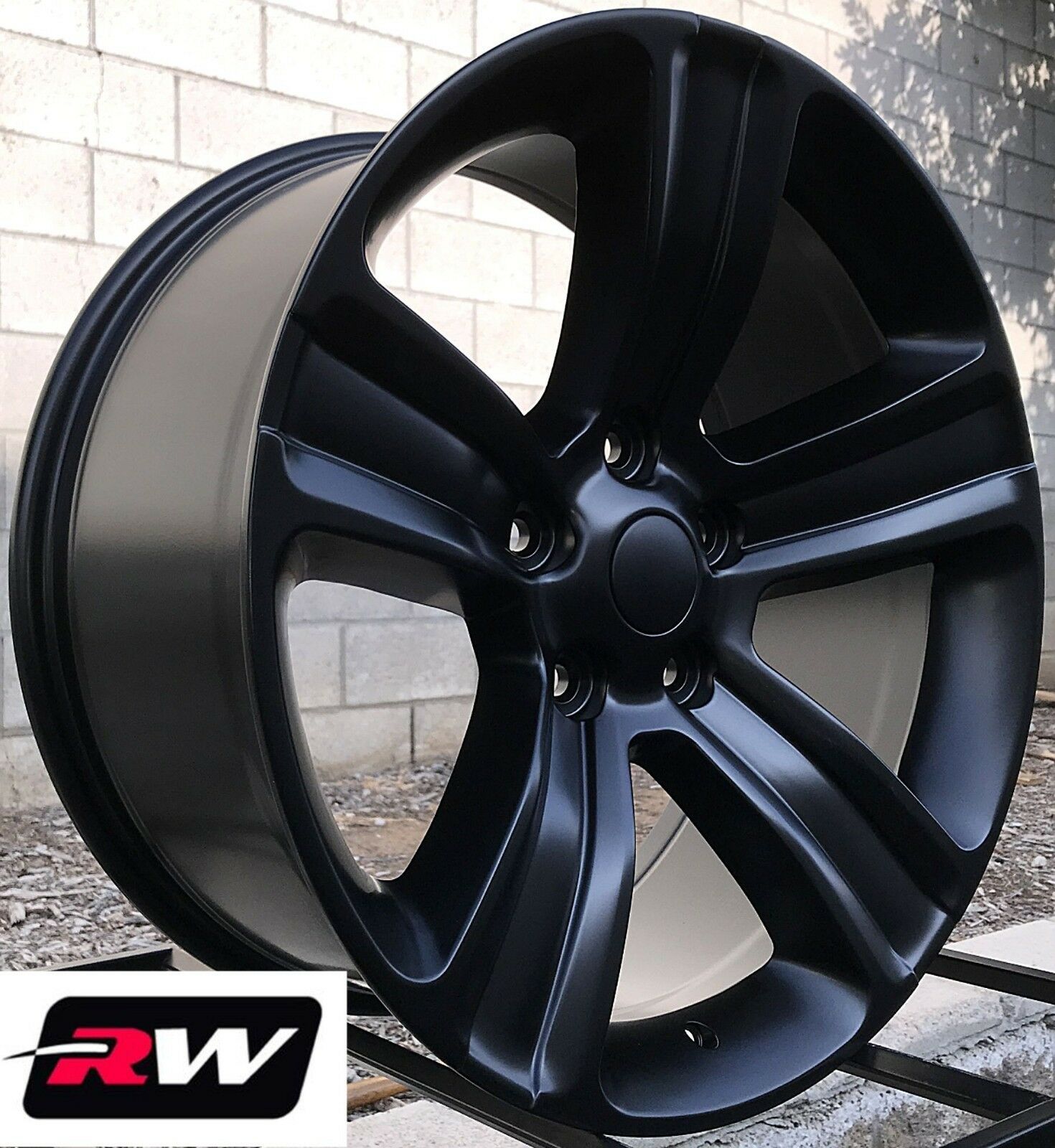

 20 inch Satin Black wheels

(Hollander # 2453)



Vehicle applications:

2wd and 4wd:





Ram 5 lug Trucks:

Ram 1500 (2wd and 4wd) 2011-2018

Ram Dakota (2wd and 4wd) 2011



Wheel specifications:

Item condition:  New, first line

Wheel brand:  RW Replicas

Part number: 955SB-298518-RAM

Hollander #:  2453

MPN#: 1UB18GSAAA

Wheel warranty:  2 years finish - lifetime structural

Rim material:  aluminum alloy

Rim structure:  One piece cast

Rim finish:  Satin black (Powder coated and clear coated

Rim diameter:  20"

Rim width:  9"

Number of bolts: 5

Lug pattern:  5x5.50" (5x139.7mm)

Offset:  +18mm

Backspace:  5.71""

Center bore: 77.8mm



Wheel accessories:

Center caps:  Black plain center caps are included (as shown)

Lug nuts: these rims require  closed end conical seat lug nuts - (not included) -  we also sell lug nuts - visit our eBay store or contact us to add lug nuts to your order.

Lug nut applications:

Dodge Ram 1500 (1998-2001): 1/2" R.H. lug nuts​​​​​​​

Dodge Ram 1500 (2002-2010): 9/16" R.H. lug nuts
Ram 1500 (2011): 9/16" R.H. lug nuts
Ram 1500 (2012-current): M14x1.5 lug nuts
Dodge Dakota (2005-2011): 9/16" R.H. lug nuts
Ram Dakota (2011): M14x1.5 lug nuts
Dodge Durango (2004-2009): 9/16" R.H. lug nuts



TPMS Sensors:  These wheels accept stock and aftermarket TPMS sensors - (not included) - we also sell TPMS sensors - visit our eBay store or contact us to add TPMS sensors to your order.

Note:  You may use your stock sensors or new ones but in either case a TPMS sensor valve rebuild kit may be required. The system will have to be reinitialized in order to work properly (a procedure that can be done at a tire shop that has a special tool to do it or at your local vehicle dealership).

Tires:  tires are not included - we also sell tires - visit our eBay store or contact us to add tires to your order.



Recommended size tires for these rims:





Ram 5 lug Trucks:

Ram 1500 (2wd and 4wd) 2011-2018

275/55-20, 275/60-20, 285/50-20, 285/55-20

Ram Dakota (2wd and 4wd) 2011

265/50-20, 275/50-20



Note:  Check your current size tires to make sure they are compatible with the new wheels being purchased.
